Tablet Press Loading

Overview

Eliminate stair climbing, lifting, and manual dumping; avoid spills, mishandling, and potential contamination; increase throughput; improve compliance across the board (OSHA, FDA, USDA, NEMA); and eliminate fugitive dust exposure with the VAC-U-MAX Tablet Press Loading System.

Our tablet press loader is a complete, ready-to-operate pneumatic conveying package for use with single- or dual-hopper tablet presses. This system will arrive at your facility fully configured and ready to go, and will include a receiver, power unit, vacuum, hose, conveying wand, control panel, and mounting lugs for easy installation.

HOW IT WORKS

The system draws material directly from drums, boxes, storage containers, and process vessels at rates of 200–250 kilograms (440–550 pounds) per hour, feeding the tablet press and ensuring it never runs out of product.

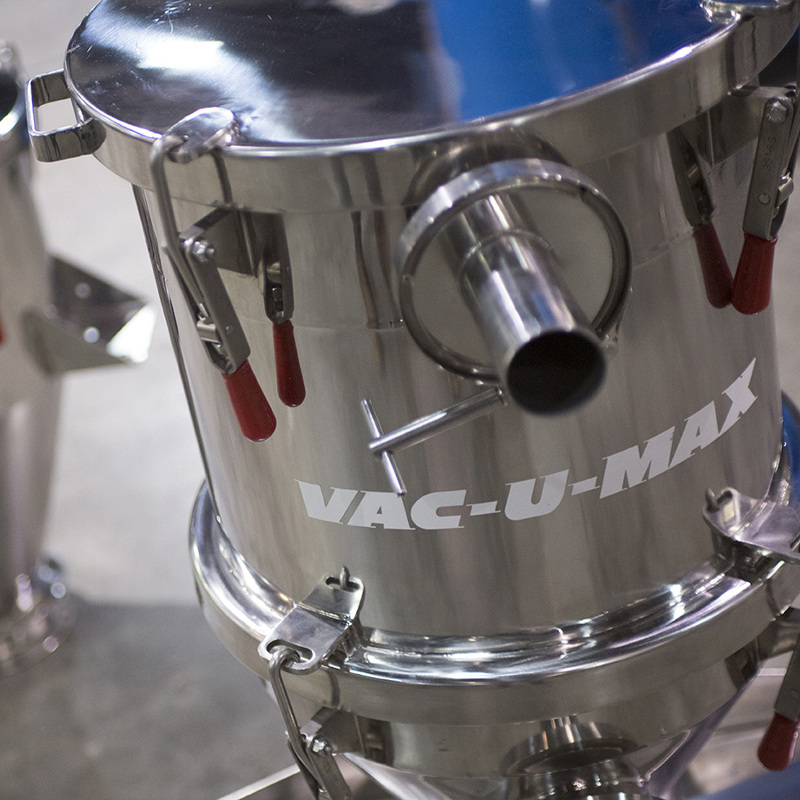

Constructed from sanitary 304 or 316L stainless steel and USDA accepted, this compact system features four quick-acting heavy duty clamps for easy disassembly and cleaning – no tools needed. A dust-tight connection of the receiver to the press hopper provides maximum cleanliness and product integrity, and automatic pulse jet filter cleaning ensures peak operating performance.

The system has a level sensor which automatically triggers conveying when the material level gets low in the tablet press hopper, keeping the line moving and ensuring that the press never runs dry, which could cause costly tooling damage.

The system can be adapted to feed multiple tablet presses simultaneously or in sequence, with systems available for single or dual hopper setups. Advanced systems with programmable controls can manage up to 16 presses, monitoring surge bin levels to ensure continuous, uninterrupted material flow across all units

Features

FEATURES & BENEFITS

• Compact design receiver package with rates of 200-250 kg per hour.
• Eliminate manual scooping of product and messy dumping or mishandling. Draw material directly from drums, boxes, storage containers, process vessels.
• Dust-tight connection of receiver to press hopper provides maximum cleanliness and product integrity.
• Easy to clean. Four quick-acting heavy duty clamps facilitate disassembly for cleaning and service. No tools required!
• Automatic pulse jet filter cleaning ensures peak operating performance.
• Sanitary construction. Furnished in 304 stainless steel (optional 316L), USDA accepted.
• The level sensor automatically starts the conveying cycle when material level reaches low level in the tablet press hopper.
• Solid-state control panel in NEMA 4/12 enclosure
• Powered by an air-operated venturi power unit or high efficiency electric blower.
• Minimal maintenance – few moving parts.
• Full opening discharge valve assures complete discharge of material.
• Mounting lugs for easy installation.
• Complete package includes: receiver, power unit, vacuum, hose, conveying wand, and control panel.

Specifications

TABLET PRESS LOADING SYSTEM

The VAC-U-MAX Advantage

THE VAC-U-MAX DISTINCTION

• “No edges, No ledges.” Interior surfaces are completely smooth, rounded, or tapered to ensure optimal material flow, easier cleaning, and improved sanitation.
• Faster processing time
• Sanitary USDA designs
• Quick-clean & take-apart
• No special tools required
• Made in the USA
• Local product support
• Performance Guarantee

SAFETY & CERTIFICATION

• Explosion protection available based on the application.
• Rupture Discs, Flame-less Venting, Chemical Suppression, Pressure Containment, Inlet & Outlet Isolation Valves
• In-House Passivation & Dye-Penetrant Testing
• FDA Documentation, Passivation Certificates of Compliance and Mill Certifications
• Bag-in-Bag-Out Filtration
• Factory Acceptance Testing (FAT) available in our 6,000 square foot customer test lab located in Belleville, NJ.
