ColumnLift™ Conveying Systems

How it Works

No stair-climbing, lifting, scooping, or dumping. The ColumnLift™ frame allows you to provide gentle and damage-free transfer of product to hard-to-reach process vessels including mixers, blenders, reactors, packing machines, and vessels with open-and-close hatch doors.

The system eliminates manual lifting and ladder climbing, allows for floor-level cleaning and maintenance, and rotates for multi-vessel loading.

HOW IT WORKS

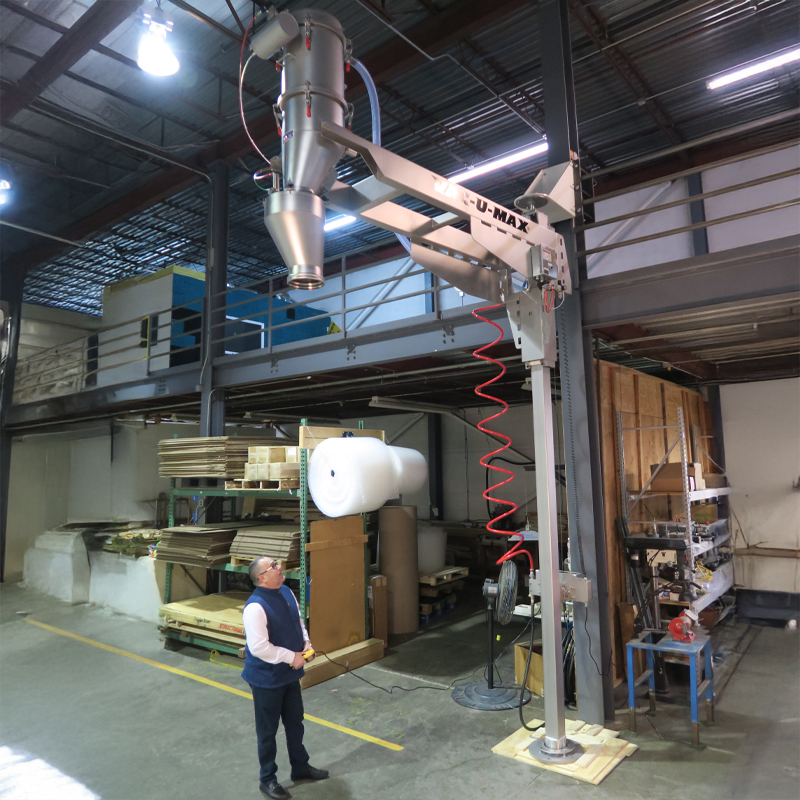

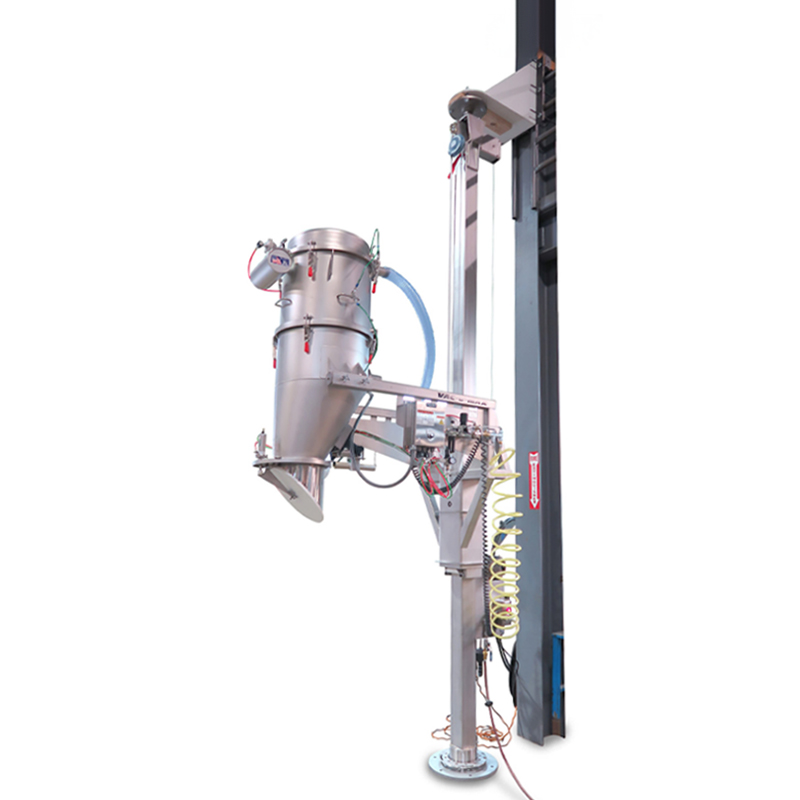

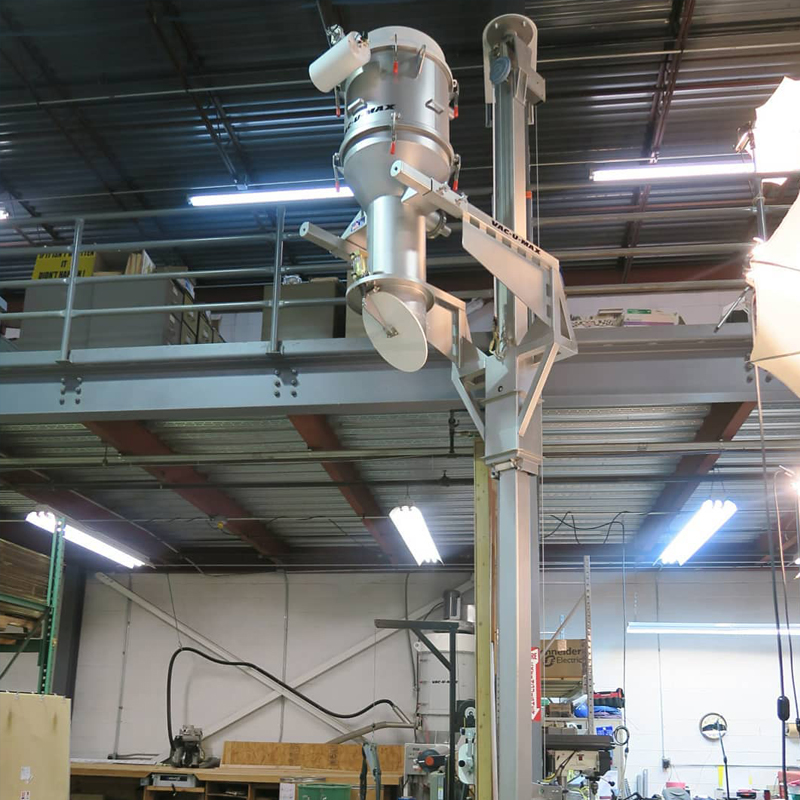

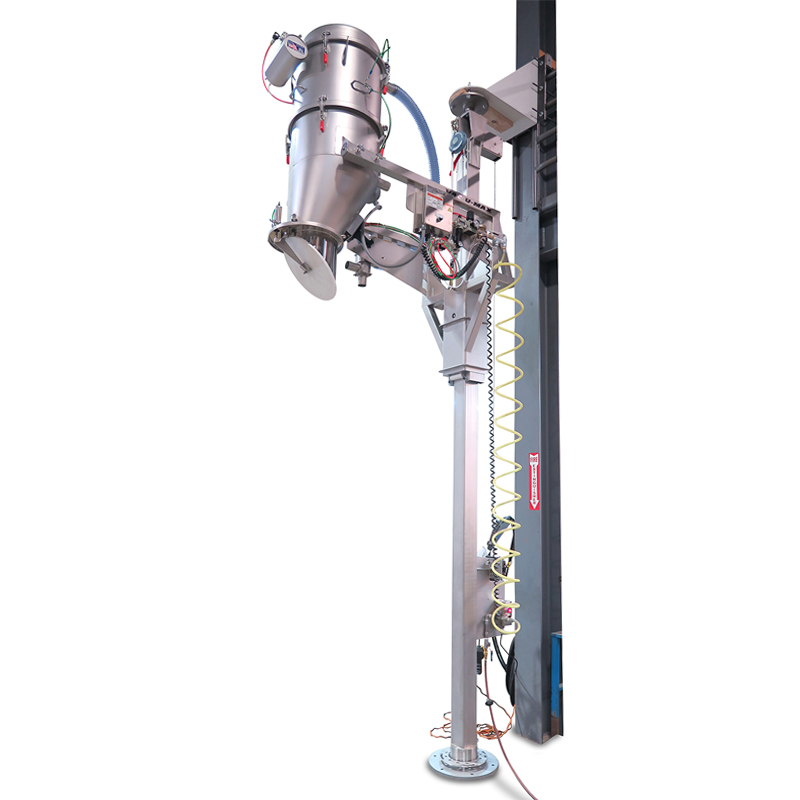

The ColumnLift frame is mounted on an 18” floor base with a top-rotating anchor. The operator stands a safe distance away and operates the electric lift mechanism with a remote pendant, raising and lowering the vacuum receiver at 10-15 feet (3-4.5 meters) per minute.

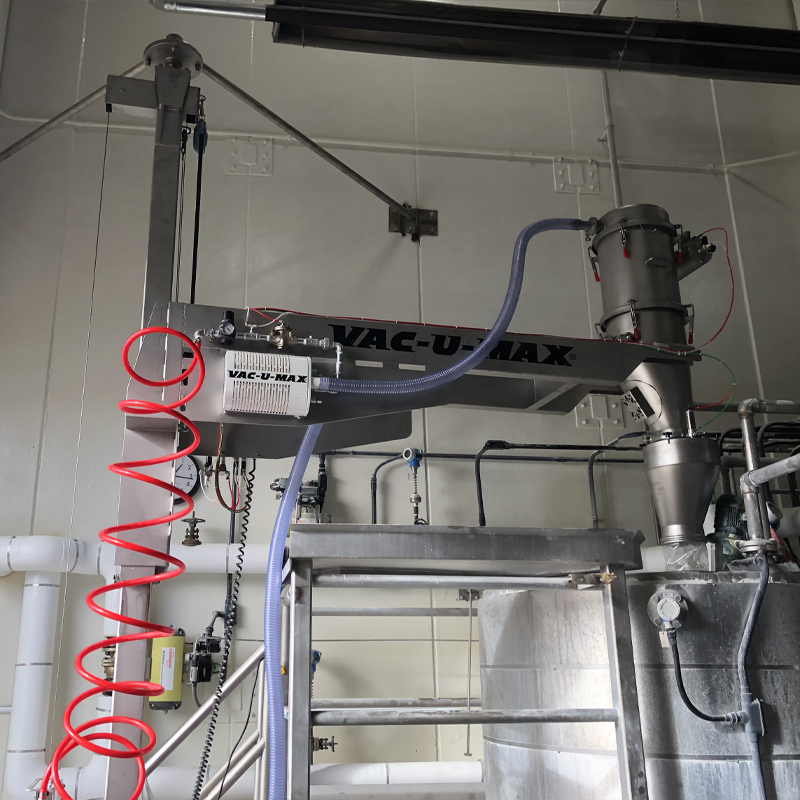

The system is easily rotated away to open and close loading hatches and can be used to load side-by-side process vessels. All cleaning, sanitation, and maintenance occur at ground level, making the system extremely convenient.

Features

FEATURES & BENEFITS

• Can be used with any VAC-U-MAX vacuum receiver up to 22” in diameter (560mm)
• Provides easy access to mixer or process vessels requiring opening and closing hatches

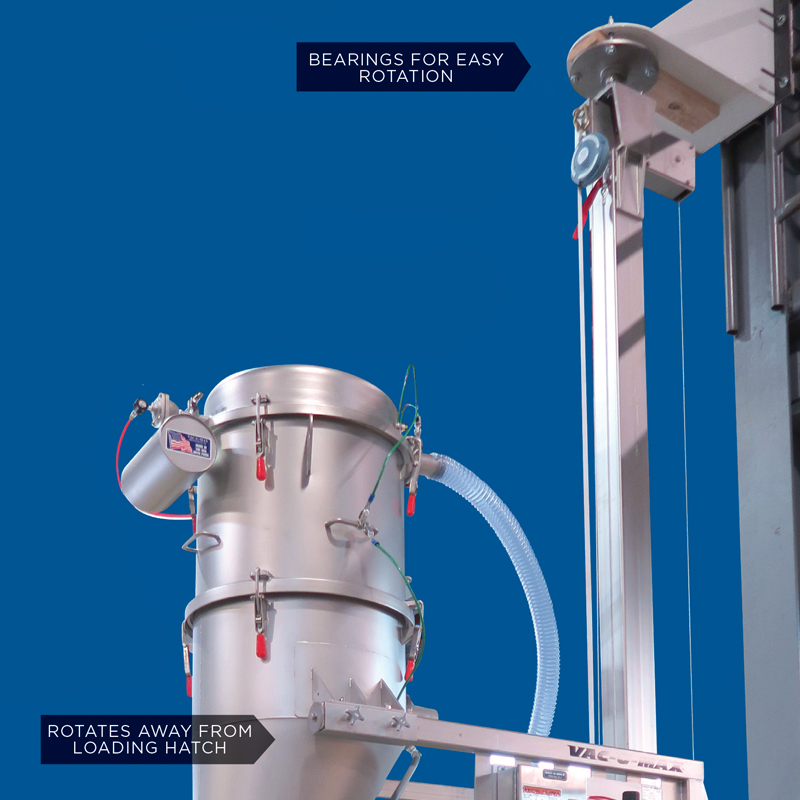

• Floor baseplate and top anchor feature bearings for easy rotation
• Electric lift mechanism controlled with remote pendant
• System raises and lowers at 10–15 feet (3–4.5 meters) per minute.
• Allows left-to-right rotation for easy swing-away of vacuum receiver from loading hatch
• Programmable and remote controls allow conveying start and stop from floor level
• System reduces lifting, stair-climbing, and manual dumping
• System utilizes minimal floor space
• Allows side-by-side loading of process vessels
• Heavy containers remain at floor level
• Vacuum receiver easily brought down to floor-level for cleaning & maintenance
• Convey from handfuls to over 5,000 lbs/hr (2268 kg/hr) depending on material bulk density
• Includes floor and top rotating anchor mounts

The VAC-U-MAX Difference

THE VAC-U-MAX DISTINCTION

• Faster processing time
• USDA designs & materials of construction
• “No edges, No ledges.” Interior surfaces are completely smooth, rounded, or tapered to ensure optimal material flow, easier cleaning, and improved sanitation.
• Easy, quick-clean & take-apart features
• Low profile, minimal footprint
• Made in the USA
• Local product support
• Performance Guarantee
• Maximize regulatory compliance
• Maximize process efficiency & productivity
• Maximize facility regulatory compliance including (FSMA) sanitation and OSHA (Walking/Working Surfaces)
