Gravity Diverter Valves

Overview

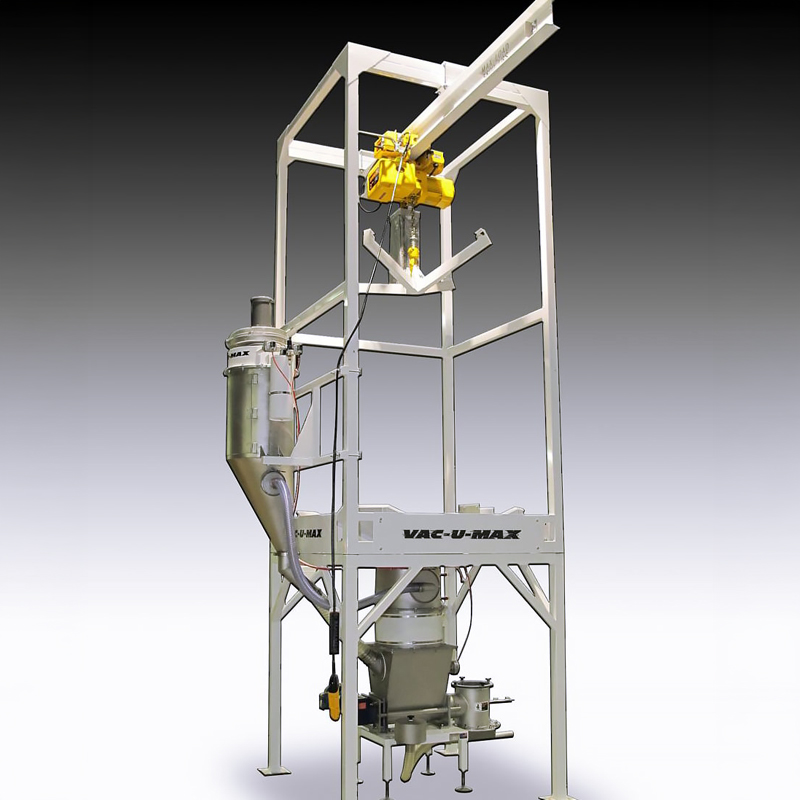

Diverter valves can significantly expand the capabilities of a conveying system. A gravity diverter valve acts similarly to a splitter valve, allowing you to use one system to feed two different pieces of equipment. A multi-ingredient system may employ flex tube diverter valves to meter material from a bulk bag unloader to batch weigh receivers.

Unload to two processes at once; switch material flow from one to two lines—or from two lines down to one; introduce multiple ingredients into a process line; or choose which vessel gets the material on any given run.

BENEFITS

• Efficiency: Use one conveyor for multiple uses; enable product changeovers without interrupting the conveying process.
• Routing Flexibility: Directing material flow to multiple storage bins, silos, or processing machines.
• System Integration: Combine multiple pickup points into a single conveying line (i.e., multi-ingredient handling systems).

VAC-U-MAX has created some of the most complex and exacting conveying systems in the world, and we have developed multiple diverter valves for different applications. Slide-plate convey line diverter valves, highly customizable pant-leg diverter valves, flex tube diverter valves, and purpose built gravity diverter valves for highly customized systems.

Pant-Leg Diverter

PANT-LEG DIVERTER VALVES (GRAVITY)

Available in various sizes and outlet configurations, VAC-U-MAX pant-leg diverter valves (gravity diverter valves) feature state-of-the-art pneumatic actuators and adjustable operating speeds. These valves allow for unrestricted material flow through open gates, and a split-body design for easy cleaning and service.

Designed from heavy gauge carbon steel or stainless steel construction, pant-leg diverter valves are furnished complete with all necessary control components.

FEATURES

• State-of-the-art pneumatic actuators
• Adjustable operating speed
• Unrestricted material flow through open gates
• Split-body design allows ease of cleaning and service
• Constructed of heavy gauge carbon steel or stainless steel construction
• Furnished complete with all necessary control components

CONFIGURATIONS
Pant-leg diverter valves are available in various sizes and outlet configurations including:

Slide-Plate Diverter

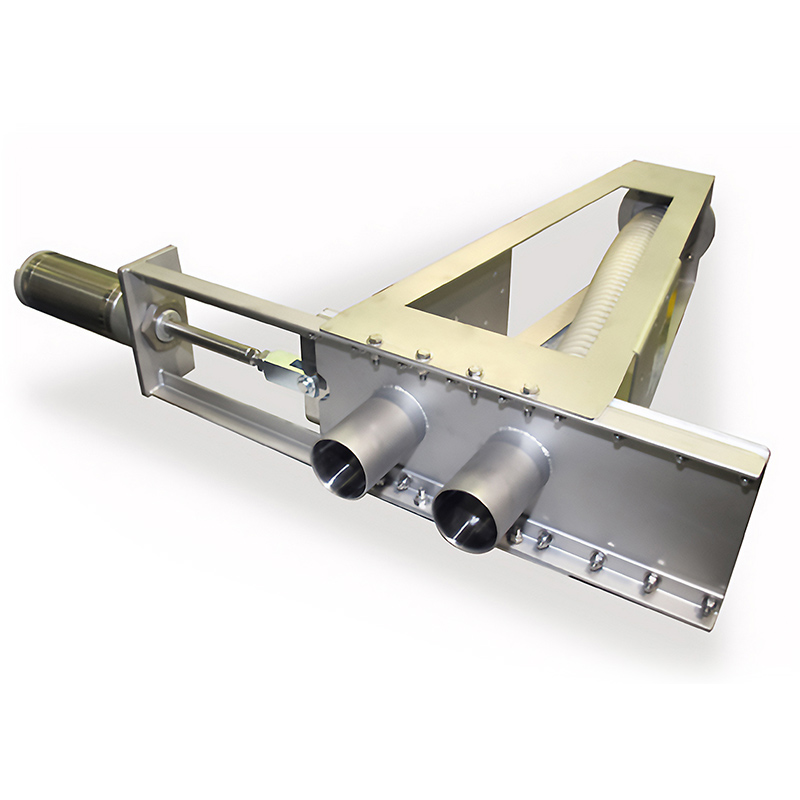

SLIDE-PLATE DIVERTER VALVES

The Vac-U-Max slide-plate diverter valve is a convey line diverter for vacuum conveying systems. It is designed for applications where you want to switch material flow from one to two lines—or from two lines down to one.

FEATURES

• Fabricated in 316 stainless steel with tubular ends
• FDA-approved product contact parts
• Also available in sanitary version with quick-release Tri-Clover ferrules and clamps
