Two-Yard Bottom Discharge Hopper

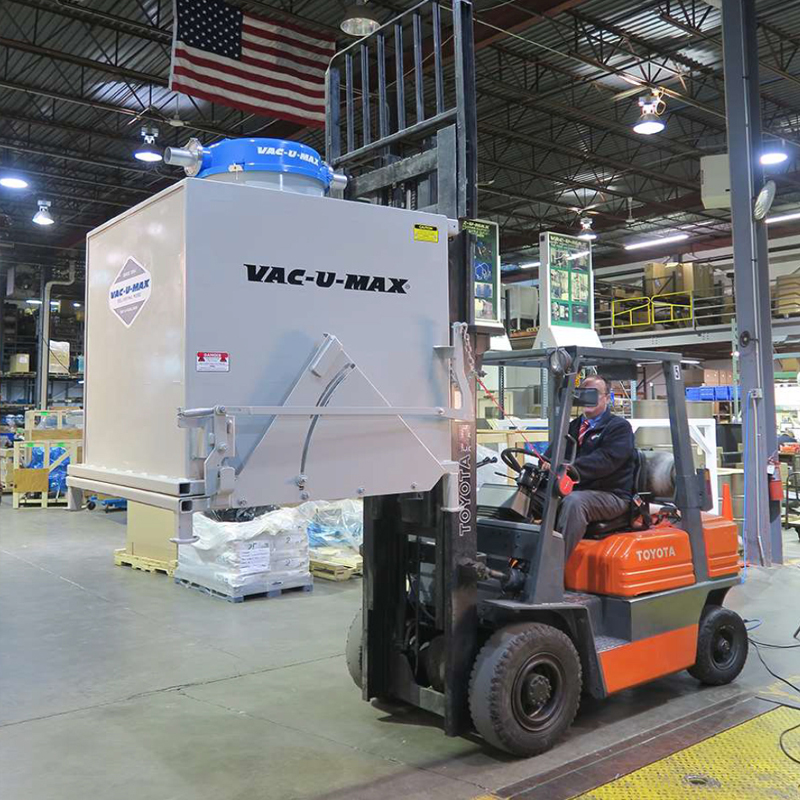

Bottom discharge style keeps the center of gravity close to the forklift mast and eliminates potential pinch points

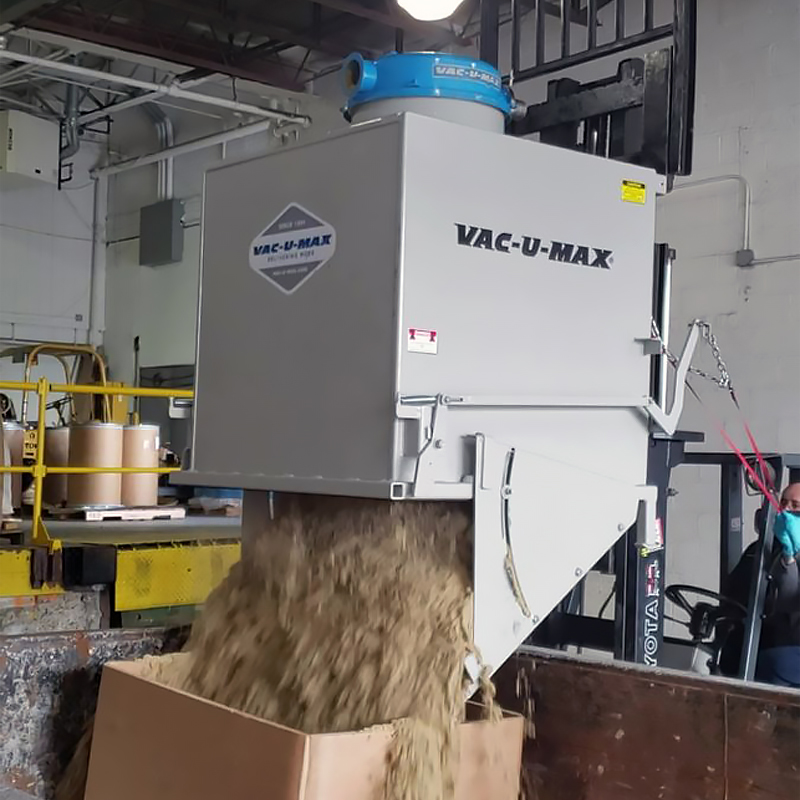

322-01 Bottom Discharge Hopper, eliminates sudden roll-forward shift of weight and center of gravity.
322-01 bottom dump hopper with 2-yard capacity used in conjunction with a VAC-U-MAX MDL1050 Heavy-Duty Vacuum Unit.
Two-Yard Bottom Discharge Hopper
Bottom discharge style keeps the center of gravity close to the forklift mast and eliminates potential pinch points
322-01 Bottom Discharge Hopper, eliminates sudden roll-forward shift of weight and center of gravity.
322-01 bottom dump hopper with 2-yard capacity used in conjunction with a VAC-U-MAX MDL1050 Heavy-Duty Vacuum Unit.

Two-Yard Bottom Discharge Hopper

Item #: 322-01

VAC-U-MAX dump hoppers allow for extended vacuuming times and large-volume recovery of dry materials. They are also significantly more stable and efficient than self-dumping (roll-forward) hoppers.

Contact our sales team

Request a quote
973.759.4600
Details

VAC-U-MAX dump hoppers allow for extended vacuuming times and large-volume recovery of dry materials. The heavy-duty reinforced containers are constructed of carbon steel with a grey epoxy finish and are rated for 16” Hg (220” / 5500 mm waterlift) maximum vacuum.

Shown in the gallery fitted with the VAC-U-MAX Model 115 Heavy-Duty Intercept Cover and being used with the VAC-U-MAX MDL1050 Heavy-Duty Vacuum (both sold separately).

PRODUCT SPECS
  • Carbon Steel Construction with Grey Epoxy Finish
  • For Dry Applications Only
  • Empty Weight: 1,400 lbs (636 Kg)
  • Maximum Payload: 7,000 lbs (3,180 Kg)
  • Overall Dimensions: (looking from the VUM Badge side): 52"D X 57"W X 62"H
  • Recommended Minimum Forklift Rating: 10,000 lbs (4500 Kg) @ 24" (610mm) load center
Smart & Stable
COMPARE TO SELF-DUMPING (ROLL-FORWARD) HOPPERS
  • Bottom discharge style keeps the center of gravity close to the forklift mast and eliminates potential pinch points
  • Square shaped bottom discharge hopper reduces the footprint by 40% compared to self-dumping roll-forward hoppers
  • 40% Larger discharge opening as compared to self-dumping hoppers
  • Pull chain design with vertical lever allows forklift operator to discharge contents without leaving the fork lift
  • Inspection door which allows for easy visual inspection of contents
  • Faster, more reliable discharge angle of 45-degrees
  • Eliminates the roll-forward motion and sudden weight shift to the end of the forks
