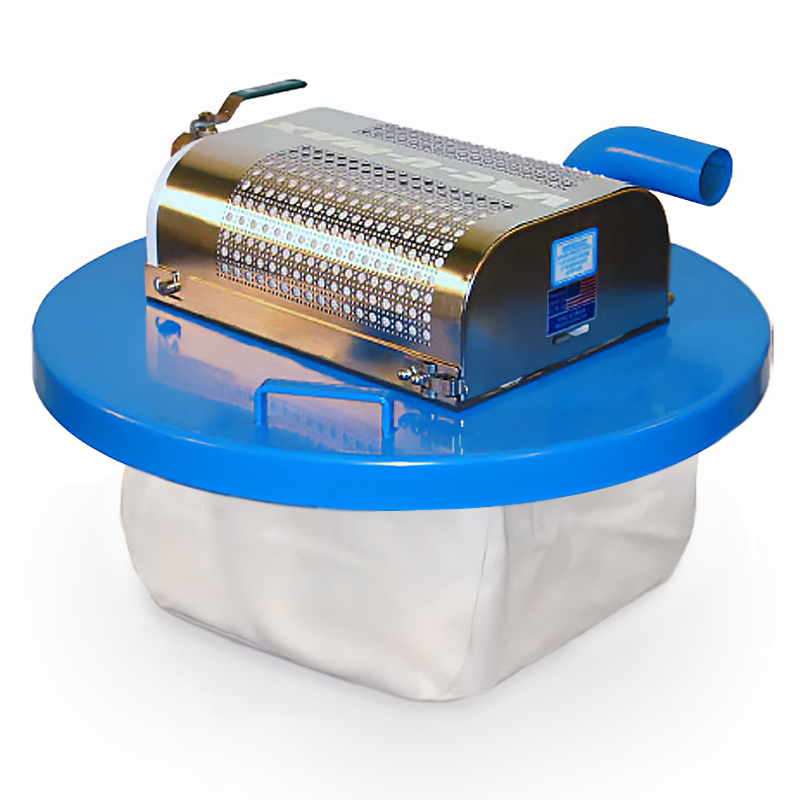

Twin Venturi Dry-Only Vacuum in Carbon Steel

Twin Venturi Dry-Only Vacuum in Carbon Steel

Item #: 55D-051

The VAC-U-MAX MDL55D Twin Venturi is an air-powered, heavy-duty vacuum designed for the continuous, safe, and efficient cleanup of dust, powders, debris, and other dry materials in industrial environments.

Contact our sales team

Request a quote
973.759.4600
Standard Equipment

VACUUM POWER HEAD WITH

  • Twin venturi suction source
  • Noise muffler and guard for sound levels below 85 dbA
  • Manual high pressure air control valve
  • Twin adjustable orifice assemblies for vacuum control 8″ Hg. – 16″ Hg
  • 2.0″ Material inlet
  • Extra Large Internal Dust Filter
  • Rugged, reliable carbon steel construction.
Technical Data

MDL55D TWIN VENTURI UNIT

  • Maximum suction power 16″ HG (208″ H2O)
  • Maximum air flow 200 SCFM
  • Suction connection 2.0 “
  • Air operated, requires 70 SCFM @ 60 PSI compressed air
  • Compressed air connection 3/4 ” NPT (female)
  • Noise Level 84 DBA @ 6″ Hg
  • Dimension 24″ diameter
  • Carbon Steel Construction with Blue Powder Coat
  • Unit fits any minimum 16 gauge, 55-gallon steel drum (sold separately)
