Model TK Liquid Recovery / Transfer Tank Kit Units (Carbon or Stainless)

Details

The VAC-U-MAX TK Unit is ideal for cleaning up spills and recovering liquids. This unique industrial vacuum cleaner is designed for high-the speed transfer of various liquids directly into a closed top 30- or 55-gallon drum. The TK operates on plant compressed air and provides high suction that offers recovery rates at over one gallon per second. These units are compact and fit directly on the holes of a closed top, vacuum tight, 30- and 55-gallon drums.

This unit is reliable, easy to operate, and features the lowest compressed air consumption on the market today, only 35 SCFM at 60 PSIG! They are designed to increase plant efficiency and improve overall productivity, saving time and money. The Model TK is offered in two different finishes and with two inlet sizes. (See options below.)

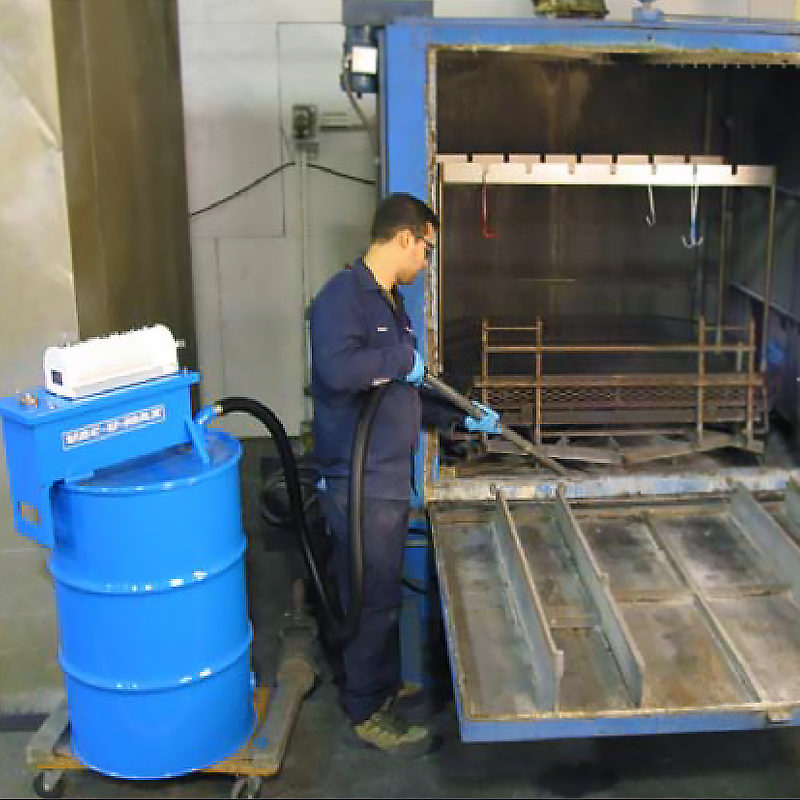

The Model TK Liquid Recovery/Transfer Tank vacuum is excellent for parts washers, machine tool sumps, drum-to-drum transfer, sludge removal from finishing tanks, ink wells on printing presses, liquid spill cleaning, hazardous liquids, spill kits, hydraulic fluids, transformer oil, wet dust collector sumps, and more.

Options

The VAC-U-MAX Liquid Recovery/Transfer Tank Kit is available in four different models depending upon inlet size, construction, and finish. It is available in both rugged carbon steel construction with the signature VAC-U-MAX blue powder coat and in a sanitary stainless steel option with a bead blast finish.

• TK-01: 1.5″ Inlet – Carbon Steel with Blue Powder Coat
• TK-02: 2.0″ Inlet – Carbon Steel with Blue Powder Coat
• TK-05: 1.5″ Inlet – Stainless Steel with Bead Blast Finish
• TK-06: 2.0″ Inlet – Stainless Steel with Bead Blast Finish

Standard Equipment

VACUUM POWER HEAD WITH:

• Single Venturi power unit
• Noise muffler and guard for sound levels below 80 DBA
• Manual HP air control valve
• Adjustable orifice assembly for vacuum control 8″ to 16″ Hg.

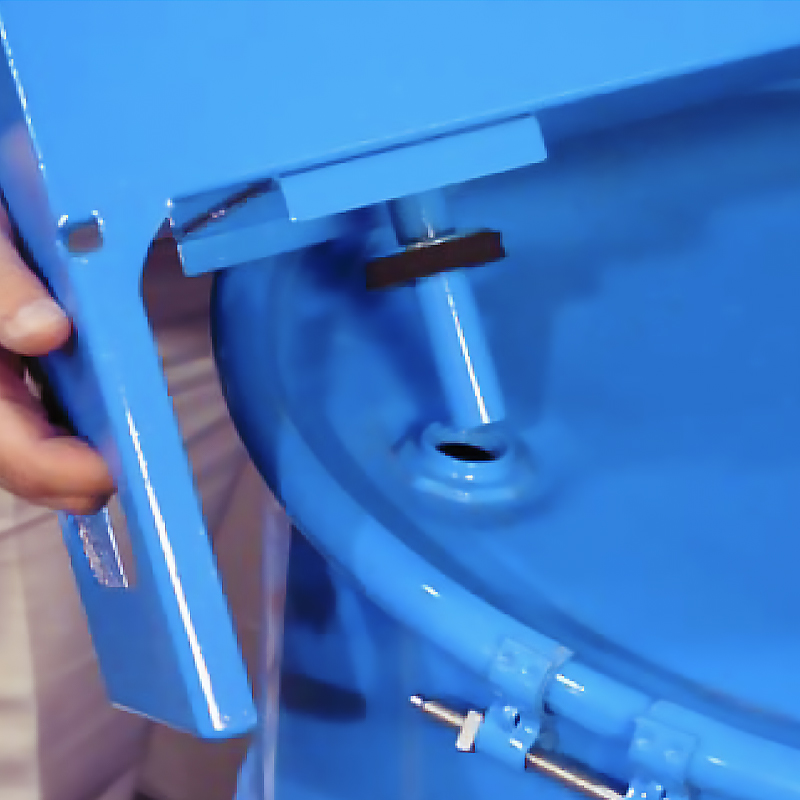

• Gasketed flange for insertion in drum vent
• Material inlet elbow: 1 1/2″ or 2″ (depending on model)
• AutoVac liquid cutoff

TK Units are designed for use on closed-top 30- or 55-gallon (18 gauge minimum) steel drums (sold separately).

Technical Data

SINGLE VENTURI POWER UNIT

• Maximum suction power: 16″ Hg. (208″ H2O)
• Maximum air flow: 100 SCFM
• Suction connection options: 1 1/2″ or 2″
• Air operated, requires: 35 SCFM @ 60 PSI compressed air
• Compressed air connection: 1/2″ NPT (female)
• Noise Level: 79 DBA @ 6″ Hg.
• Weight: 36 lbs.
• Dimensions: 19″H x 24″L x 11″W
• Finish options: Carbon Steel with Blue Powder Coat or Stainless Steel with Bead Blast Finish
