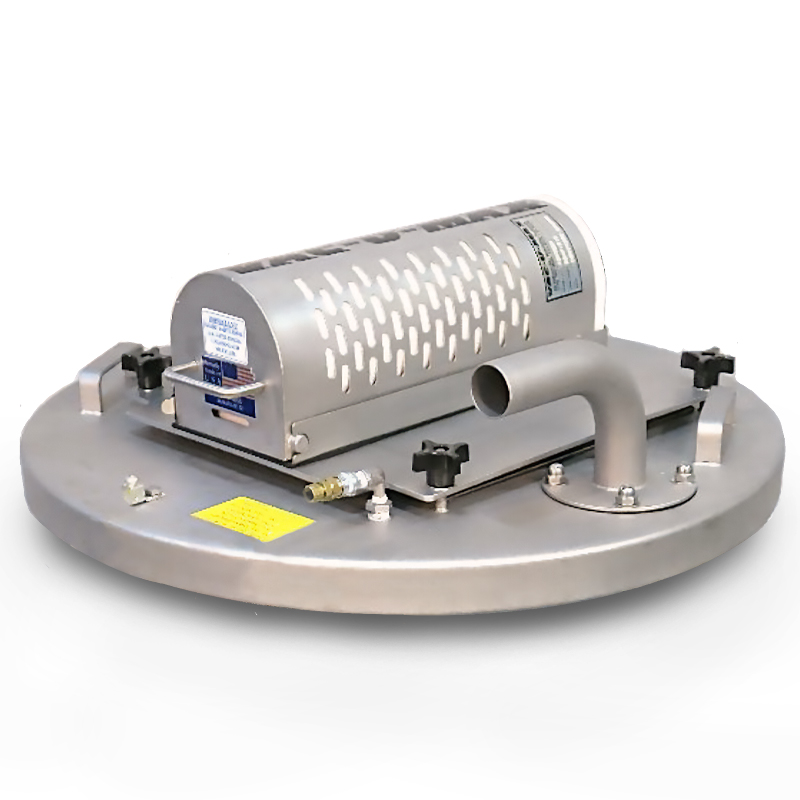

Single Venturi HEPA Vacuum in Stainless Steel

Details

Protect your workers and your equipment from fine dusts with a VAC-U-MAX industrial HEPA vacuum. Best industrial hygiene practices recommend using HEPA vacs when vacuuming dusts that contain hazardous or toxic materials such as pharmaceutical powders, silica, lead, asbestos, beryllium, and hexavalent chrome. VAC-U-MAX HEPA vacuums have the highest protection of any industrial vacuum on the market.

The Model 55AF Single Venturi HEPA vacuum fits any minimum 16 gauge, open top 55-gallon steel drum (sold separately). and features two layers of filtration – a primary extra-large PTFE coated static conductive dust filter rated 99.9% efficient at 1 micron, and a secondary HEPA-Filter cartridge rated 99.97% efficient at 0.3 micron.

This model features sanitary stainless steel construction for food, pharmaceutical, and other high-purity applications. It is also available in a rugged, cost-effective carbon steel version with a power coat finish.

Technical Data

MDL55AF VACUUM POWER HEAD WITH:

• Single Venturi suction source. Compressed air power
• Noise muffler and guard for sound levels below 80 dbA
• Manual HP air control valve
• Adjustable orifice assembly for vacuum control 8″ Hg. – 16″ Hg
• Extra large primary dust filter, PTFE coated, rated 99.9% efficient @ 1 micron
• Absolute HEPA filter cartridge rated 99.97% efficient @ 0.3 micron
• 1.5″ Material inlet
• Cover unit fits any minimum 16 gauge, 55-gallon steel drum (collection container sold separately)

Technical Data

SINGLE VENTURI POWER UNIT

• Maximum suction power 16″ HG (208″ H2O)
• Maximum air flow 100 SCFM
• Suction connection 1.5″
• Air operated, requires 35 SCFM @ 60 PSI compressed air
• Compressed air connection 1/2 ” NPT (female)
• Noise level 79 DBA @ 6″ Hg
• Weight 85 lbs.
• Complete with HEPA filter 99.97% efficient on particles D.O.P. test certified as small as 0.3 micron
