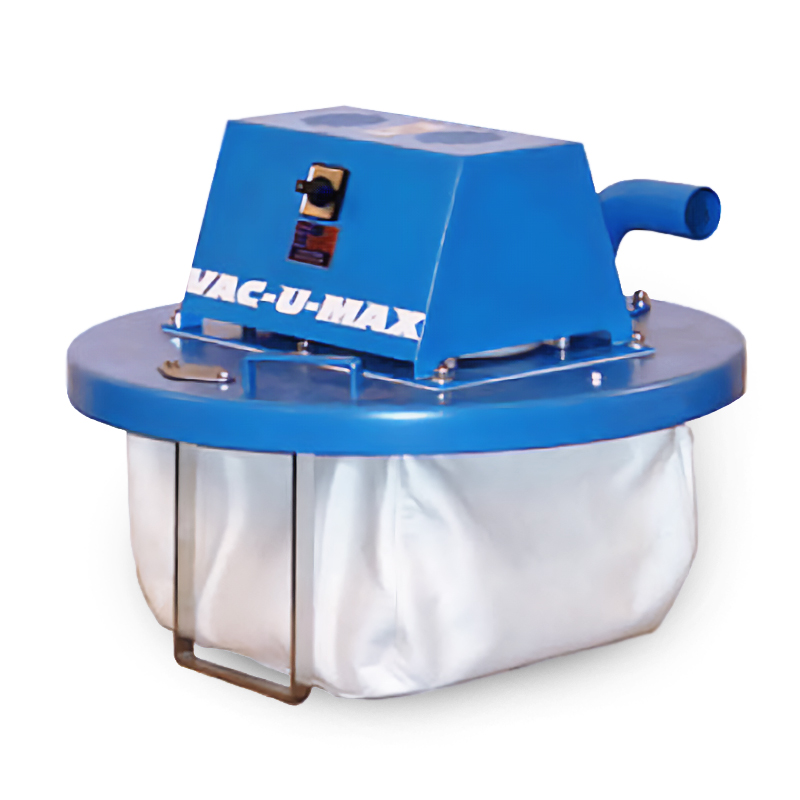

HEPA Electric Drum Top Industrial Vacuum Cleaner (110 or 220V)

Details

The Model 55E Electric HEPA Drum Top Vacuum is a single phase industrial vacuum cleaner designed for intermittent-duty vacuum applications where absolute filtering is required. This unit is available in 110V and 220V options, it fits any minimum 16 gauge, 55 gallon steel drum, and is excellent for batch cleaning applications.

VAC-U-MAX HEPA-filtered industrial vacuum cleaners have the highest protection of any industrial vacuum on the market and feature two layers of filtration – a primary extra-large PTFE coated static conductive dust filter rated 99.9% efficient at 1 micron and a secondary HEPA-filter cartridge rated 99.97% efficient at 0.3 micron.

Features

VACUUM POWER HEAD WITH:

• Two (2) Carbon-brush type vacuum motors
• Large PTFE dust filter (Rated 99.9% @ 1 Micron) and support cage
• DOP Certified HEPA Filters (Rated 99.97% @ 0.3 Micron)
• Sequential motor starting to ease starting load
• Large motor enclosure for noise reduction and protection
• 110V option: Intermittent-duty electric motor, 110V operation with a 15’ power cord. 110V units include a 3-prong grounded plug.
• 220V option: Intermittent-duty electric motor, 220V operation with a 15’ power cord. Customer provides their own plug for 220V units.
• Vacuum equalizer kit for poly bag loading
• This cover unit fits any minimum 16 gauge, 55 gallon steel drum collection container (sold separately).

Technical Data

• Maximum suction power 7.5″ HG (102″ H2O)
• Maximum air flow 210 SCFM
• Suction connection 2.0″
• Voltage 110V or 220V/ 1ph
• Amp Draw 16A @ 110V / 8A @ 220V
• Weight 52 lbs
• Dimensions 25″ dia.
• Standard Finish: Carbon steel construction with blue powder coat
